AUTOMOTIVE CV BOOT & JOINT REPLACEMENT

PHONE: 636 7064

Geddes Automotive Auckland replacement service for cv boot & cv joint for cars vans & trucks. We fix cars cv joints making a clicking noise.

LINKS TO CV JOINTS & BOOTS AUTOMOTIVE REPAIRS:

  WHAT IS A CV BOOT CV JOINT:   CV BOOT & CV JOINT
  BAD CV JOINT SYMPTOMS FOR REPLACEMENT:   BAD CV JOINT SYMPTOMS
  REPLACEMENT CV JOINT & REPLACEMENT CV BOOT:   REPLACEMENT CV JOINT & BOOT
  CV JOINT REMOVAL   CV JOINT REMOVAL
  REPAIR CV BOOT REPAIR, CV JOINT REPAIR:   REPAIR CV JOINT & CV BOOT
  COST CV JOINT REPLACEMENT COST & CV BOOT COST:   COST CV JOINT & CV BOOT COST

WHAT IS A CV BOOT & CV JOINT:

CV stands for CONSTANT VELOCITY. A CV Joint is located at the ends of the drive shafts going to the drive wheels. The CV Joint allows the front wheels to steer and go up and down, and if the rear wheels provide the drive to the road the CV allows them to go up and down as well as drive the vehicle forward and reverse. The CV Joint allows the change in direction of the drive from the transmission to the wheels. On a front wheel drive car you would not be able to steer the vehicle without the use of universals or the Constant Velocity Joints.

The CV Boot is a rubber boot which clamps over the CV Joint to keep the grease in and dirt and water out of the CV Joint. A split CV Boot or torn CV Boot will allow the grease to flick out and dirt and water to enter causing premature wear and eventual destruction of the CV Joint. At each end of the drive axle shaft there is an outer CV Boot and CV Joint and an inner CV Boot and CV Joint. Usually the outer CV Boot and CV Joint wear out quicker than the inners.

BAD CV JOINT SYMPTOMS FOR REPLACEMENT:

The most common bad cv joint symptoms is when turning into a driveway and the vehicles wheel is forced up into the mudguard cavity area you hear a clicking sound (CV Joint noise). Other bad cv joint symptoms is a vibration in the suspension.

When a CV is about to collapse the cv joint noise will be more like a clunking sound. Although usually the CV Joint will continue to work for a while longer it will eventually get to a point when the CV Joint will collapse.

When they collapse it can cause a lot more damage and can cause the vehicle to loose control — can cause an accident. There will probably be extra damage and extra unnecessary cost for you.

If the CV Joint does collapse then it may be that the complete suspension and brake system requires replacement for that wheel (The axle shaft can act as a hammer and smash parts around it).

You would be wise to arrange for a replacement CV Boot as soon as you see a split or tear. You would also be wise to arrange for a replacement CV Joint as soon as you hear a clicking CV Joint noise or feel a vibration.

REPLACEMENT CV JOINT & REPLACEMENT CV BOOT:

This is just a rough guide of what is required for a CV Boot change or CV Joint change (installing CV Joint). A replacement CV Boot usually takes approximately the same amount of time as a replacement CV Joint.

CV JOINT REMOVAL:

We need to remove the wheel, disconnect suspension parts and the CV Joint nut. Remove the clips clamping the CV Boot to the CV Joint and drive shaft. Providing the CV Joint shaft splines have not seized the suspension hub should slide off the CV Joint splines. Once the drive shaft is off the old CV Joint it can now be replaced with a new CV Boot Joint.

If you are replacing the CV Boot only, then we will re — grease CV Joint then replace the CV Boot. If the splines are seized then we sometimes need to use a special CV Boot tool and a special expandable CV Boot to expand the boot over the CV Joint.


Car Breakdown Tow Truck
CV Joint Problems — Our vehicle recovery
Tow Truck
CV Boot CV Joint
Outer CV Joint & shaft prior to removal.
CV Joint Removed
After CV's and shaft were removed.

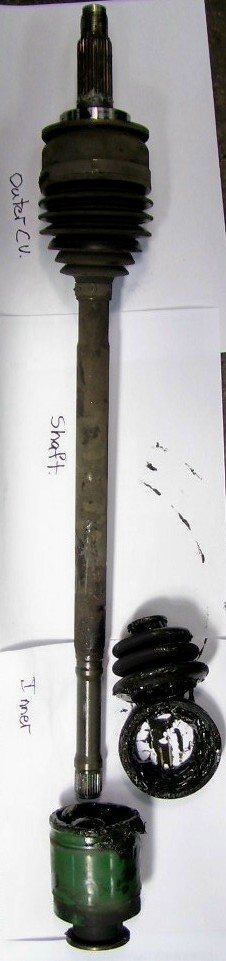

CV Joint Removed
From top of photo; Outer CV Boot & Joint, Axle Shaft, torn Inner CV Boot, Inner CV Joint.

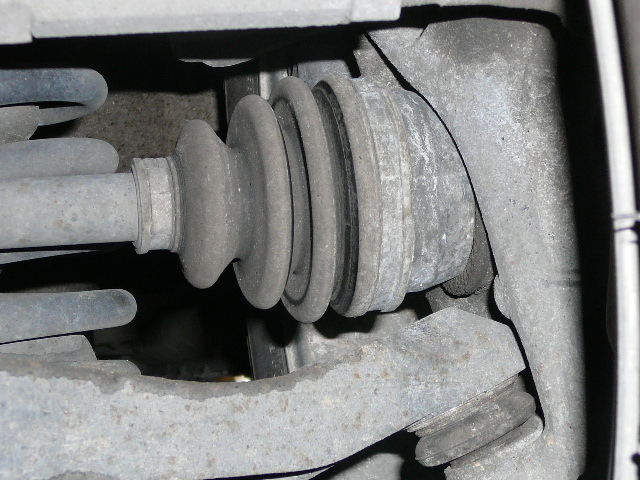

CV Boot Protecting CV Joint
Centre of photo is the Outer CV Boot covering the Outer CV Joint.

Sometimes we remove both ends of the drive axle and the inner CV Joint. For just the automotive CV Joint Boot replacement (CV Boot only) the same procedure is required except only the boot is replaced. A rear CV Boot and Joint is similar in procedure to a front CV Boot and Joint.

REPAIR CV JOINT & CV BOOT REPAIR:

How to repair a CV Joint? CV Joints can be rebuilt but that is usually more than the new CV Joint replacement cost. A CV Boot could be repaired but the cost would be greater than a replacement CV Boot and a replacement would normally last much longer.

COST CV JOINT REPLACEMENT & CV BOOT COST:

An outer CV Boot cost for a replacement is from:

$98.50 + GST.

An inner CV Boot cost for a replacement is from:

$128.00 + GST.

Cost for a CV Joint outer replacement is from:

$145.00 + GST.

Cost for a CV Joint inner replacement is from:

$208.50 + GST.

Approximate CV Joint repair cost (Cost to rebuild a CV Joint):

$200 + GST + fitting.

All Terrain Vehicles and four wheel drive vehicles; most are similar costs and procedures as provided above.

For an ATV CV Boot or Joint replacement call us. For all vehicles, call us with the Make, Model, Year, Engine number and Registration number and we will be able to quote you for these repairs.

Phone: 09 636 7064
